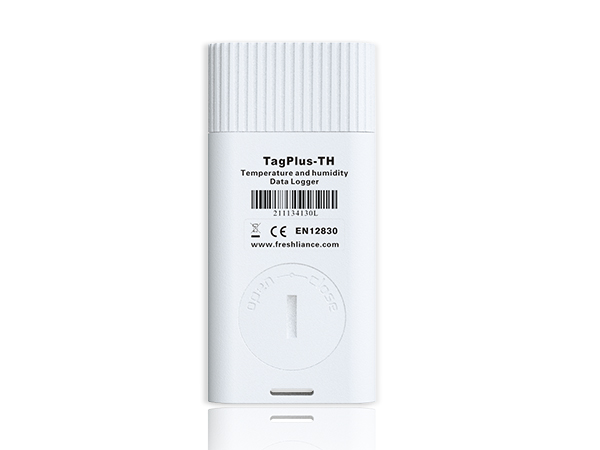

TagPlus-TH LCD Temperature and Humidity Data Logger

Product Info

  • Temperature Range -30℃~+70℃; 0~100%RH
  • Accuracy ±0.5℃ at full range (-30℃ to +70℃); ±3%RH
  • Run Days Max.180 days
  • Report Format PDF/CSV/PDF&CSV
  • Memory Capacity 35000 readings PDF, 20000 readings PDF & CSV


The TagPlus-TH LCD Temperature and Humidity Data Logger is a powerful device for monitoring and recording temperature and humidity data in your environment. This temperature data logger uses a high-precision temperature and humidity sensor to ensure the accuracy and reliability of measurement results. This is particularly important for environmental monitoring tasks that require a high degree of accuracy, such as in laboratory research, pharmaceutical production, and precision warehousing.

The TagPlus-TH LCD temperature and humidity data logger features an LCD display, high-precision sensors, data logging and storage functions, alarm functions, and software compatibility, making it an ideal choice for monitoring and controlling environmental temperature and humidity. It can be widely used in many industries, including food, pharmaceuticals, warehousing and logistics, and indoor environment monitoring.


LCD display
The LCD screen displays all parameters, maximum, minimum, average temperature values, and high/low alarm curves.

Alarm function
Usually has an alarm function that sounds when the temperature or humidity exceeds a preset threshold. This enables users to take timely measures to prevent temperature and humidity conditions from exceeding the allowable range and protect product quality and safety.

Automatically generate PDF/CSV data reports
Automatically generate reports in PDF/CSV/PDF+CSV format with charts and tables, no cables or readers are required.

Lightweight and easy to use
Features a lightweight design, easy to carry and install.

Good waterproof effect and strong adaptability
Usually made of durable materials, they have good water-proof, dust-proof, and shock-proof properties and are suitable for various working environments.

Provide ad hoc reports
Temporary mode allows the USB camera to continue operating after the user has generated and read a temporary report.

Large memory capacity
maximum. Only PDF reports can be read 35,000 times; maximum. 20,000 reads were reported in PDF and CSV.

Replaceable battery
Battery life is up to 180 days, after which time the battery can be replaced.

Temperature unit switchable
Celsius (℃) and Fahrenheit (℉) can be switched freely.


Model Tagplus-TH Type Reusable
Temperature Range -30℃~+70℃ Temperature Accuracy ±0.5℃
Humidity Range 0~100%RH Humidity Accuracy ±3%RH
Resolution 0.1℃, 0.1%RH Memory Capacity 35000 readings PDF only, 20000 readings PDF & CSV
Report Format PDF/CSV/PDF&CSV Run Days Max.180 days
Report Output Automatic, no software needed Connection USB, NFC (optional)
Compatible OS Windows, Mac Logging Interval

1 minute-24 hours

Start Delay 0 minute-24 hours Protection Grade IP65
Battery 3.0V CR2032 lithium battery Parameters Configurable Yes
Dimension 82mm*39mm*13.5mm Weight 29.3g
LCD Screen Display Temperature value, Max/Min/Average value, Out of alarm range symbol, High/Low alarm curve, Battery level


The TagPlus-TH LCD temperature and humidity data logger can provide accurate temperature and humidity data to help monitor and control environmental conditions. Therefore, it is widely used in the transportation and storage environment of some items that are sensitive to temperature and humidity.

TagPlus-TH can be used to monitor temperature and humidity in environments such as refrigerated warehouses, cold chain transportation, and food display cabinets. It can help the food industry ensure that products meet hygiene standards and avoid food spoilage and safety issues.

In the pharmaceutical process, some drugs and chemicals are very sensitive to temperature and humidity. TagPlus-TH data loggers can be used to monitor temperature and humidity conditions in pharmaceutical equipment, storage areas, and transportation processes. It helps pharmaceutical companies adhere to strict quality control standards and ensure the stability and effectiveness of drugs.

In offices, laboratories, medical facilities, and other indoor environments, TagPlus-TH data loggers can be used to monitor and record temperature and humidity conditions. It can help ensure that the indoor environment meets comfort and safety standards, providing a suitable working and living environment.

In greenhouses and agriculture, temperature and humidity play an important role in plant growth and development. The TagPlus-TH data logger can be used to monitor temperature and humidity in greenhouses, helping farmers and horticulturists control the greenhouse environment, provide suitable growing conditions, and optimize crop yield and quality.

TagPlus-TH data loggers can be used to monitor temperature and humidity conditions in warehouses, shipping containers, and transport vehicles. It can help logistics companies track and record the temperature and humidity changes of goods throughout the supply chain, ensuring that goods are transported and stored under appropriate environmental conditions.

TagPlus-TH data loggers can also be used in areas such as laboratory research, healthcare, museums, and art conservation to ensure the stability and safety of environmental conditions.
