Atlas Log-90 Multi-use Ultra Low Temperature Data Logger

Product Info

  • Temperature Range -90℃~+200℃ (external probe)
  • Accuracy ±0.5℃(-90℃~+70℃)/±1℃(others)
  • Run Days
  • Report Format Automatic PDF/CSV report
  • Memory Capacity 35000 readings PDF; 20000 readings PDF&CSV

Introduction

The Atlas Log-90 Multi-use Ultra Low Temperature Data Logger is a device with an external probe that can measure ultra-low temperature ambient temperatures. It can accurately measure as low as -90°C (-130°F) and up to 200°C ( 392.0 °F) temperature. Designed to handle extreme cold environments, it ensures the integrity of stored materials such as biological samples, vaccines, and sensitive chemicals, helping to maintain their quality and viability.

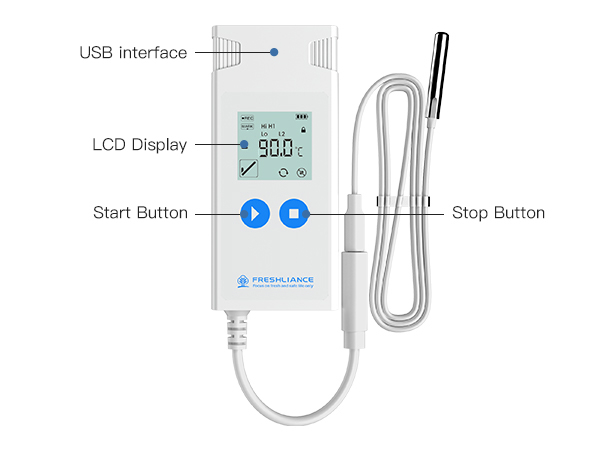

Atlas Log-90 Multi-use Ultra Low Temperature Data Logger has an LCD display through which you can view the real-time, maximum/minimum/average temperature values of the device, as well as alarm and operating status and battery power, which can remind the user to pay attention to the environment in a timely manner Make adjustments to the temperature. After the trip, you can use the USB plug to connect to your computer to generate PDF/CSV/PDF+CSV reports with charts and tables, without the need for additional software.

Features

Parameters configurable
Parameters can be configured freely through configuration software.

Replaceable battery
Its battery lasts up to 90 days. Batteries can be replaced and reused.

Alarm points and markers
Up to 6 alarm points can be set and up to 9 marks can be made.

password protection
A password can be set to prevent others from operating the device without authorization.

Provide ad hoc reports
Ad hoc mode allows the device to continue working after the user generates and reads ad hoc reports. The current data information can be read through the configuration software.

LCD alarm indication
Once the temperature out of the presetting alarm range, the alarm symbol(x) will be displayed on the LCD screen

Temperature units switchable
Celsius (℃) and Fahrenheit (℉) can be freely switched.

Large memory capacity
Max. 35000 readings for only PDF reports; Max. 20000 readings for PDF&CSV reports.

Specification

Model

Atlas Log-90

Type

Reusable

Run Days

Max. 90 days

Memory Capacity

PDF: Max. 35000 readings; PDF&CSV: Max. 20000 readings

Temperature Range

-90℃~+200℃ (external probe)

Temperature Accuracy

±0.5℃(-90℃~+70℃)/±1℃(others)

Alarm Type

LCD screen display, buzzer (about 60dB at 3m)

LCD Screen Display

Normal, Alarm, Max/Min/Average Temperature Value, Running Status

Resolution

0.1℃

Logging Interval

1 minute-24 hours

Start Delay

0 minute-24 hours

Report Format

Automatic PDF/CSV report

Connection

USB, NFC (optional)

Compatible OS

Windows, Mac

Battery

CR2450

Dimensions

96mm*44mm*15mm

Protection Grade

IP65

Certifications

CE, ROSH, EN12830

Applications

Atlas Log-90 Multi-use Ultra Low Temperature Data Logger can stably monitor and record whether it is used in low-temperature storage, pharmaceutical research, industrial processes, scientific research, or cold climate environment monitoring, providing users with accurate and reliable data.

The Atlas Log-90 Ultra Low Temperature Data Logger is ideal for ultra-low temperature shipping and temperature monitoring solutions that require frequent temperature logging. It can also be used to record and monitor ultra-low temperatures in cold storage, cold chain transportation, and dry ice storage environments. Continuous recording of low-temperature environments in the fields of biopharmaceuticals, life sciences, biological samples, drug cold chain, vaccine cold chain, blood cold chain, diagnostic reagents (including biological reagents, molecular reagents, cell biology reagents), and other fields.
